ENIVO
END OF LINE SYSTEMS

Palletizing
Systems

High Performance Palletizing Solutions

ENIVO end-of-line systems are developed to palletize and package products leaving the production line in an organized, safe and efficient way. This approach, where palletizing, load stabilization and packaging processes are handled together, helps keep production flow uninterrupted while making logistics operations more reliable and predictable.

ENIVO designs these systems not only as individual equipment, but as integrated solutions working together with conveyors, pallet feeding systems, slip sheet placement, stretch wrapping and outbound logistics.

ENIVO palletizing systems are designed to palletize different product types in an organized, stable and safe manner. System selection is determined by evaluating product characteristics, capacity requirements, product variety, palletizing patterns and plant layout together.

Robotic Palletizing

Flexible production environments

Intelligent and Adaptive Solutions for Flexible Production Environments

Intelligent and Adaptive Solutions for Flexible Production Environments

ENIVO robotic palletizing systems are developed for production lines with different product types, variable package structures and multiple palletizing scenarios. Thanks to the robot-based structure, the system can switch quickly between products and adapt easily to changing production conditions. This provides an important advantage especially in plants where different products are produced on the same line or production plans change frequently. With compact layouts, precise positioning and high repeatability, robotic systems deliver reliable palletizing performance for bagged products, cartons, boxes, packaged goods and different packaging formats.

600-1200
Bags/Hour
4+
Grippers
360°
Flexibility

Operating Principle

Products are transferred to the robot pick-up point through the conveyor system. The product is picked with a gripper system selected according to the application and placed on the pallet according to the predefined palletizing pattern. Palletizing patterns can be managed through software, and quick changeover between different product recipes is possible. Depending on the system scope, empty pallet feeding, slip sheet placement, plastic sheet placement, pallet discharge and stretch wrapping integration can also be provided.

Application-Specific Gripper Solutions

ENIVO robotic palletizing systems are configured with gripper solutions selected according to product characteristics, packaging structure, handling requirements and target capacity. Different products require different handling approaches. The gripper system has a direct impact on palletizing speed, positioning accuracy, product safety and final pallet quality. For this reason, gripper selection is evaluated not as an independent equipment choice, but as an integral part of the palletizing system.

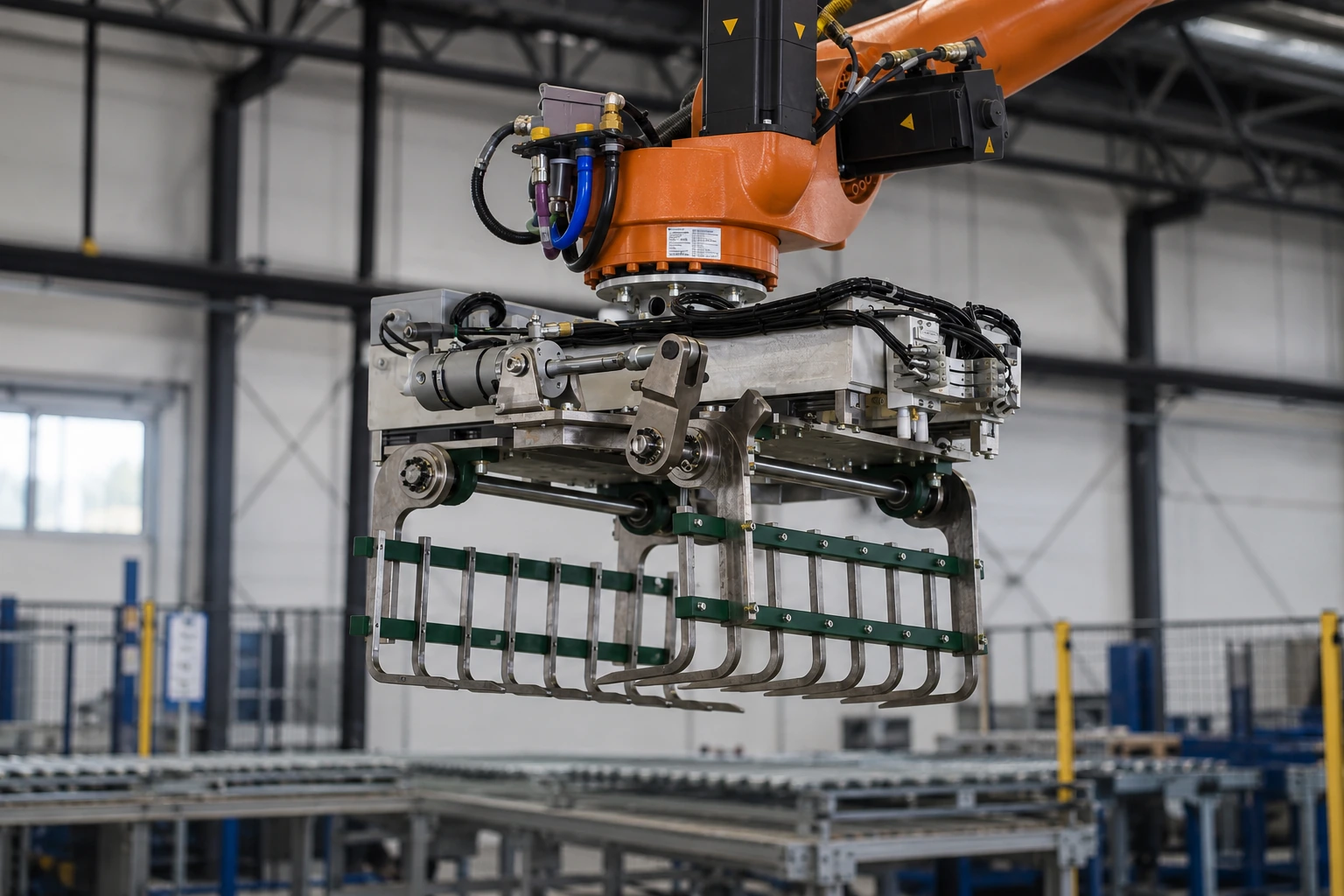

Fork Gripper

Fork Gripper

Provides reliable and precise handling of bagged and boxed products.

Double Fork Gripper

Double Fork Gripper

Increases capacity and reduces cycle time by handling two products at the same time.

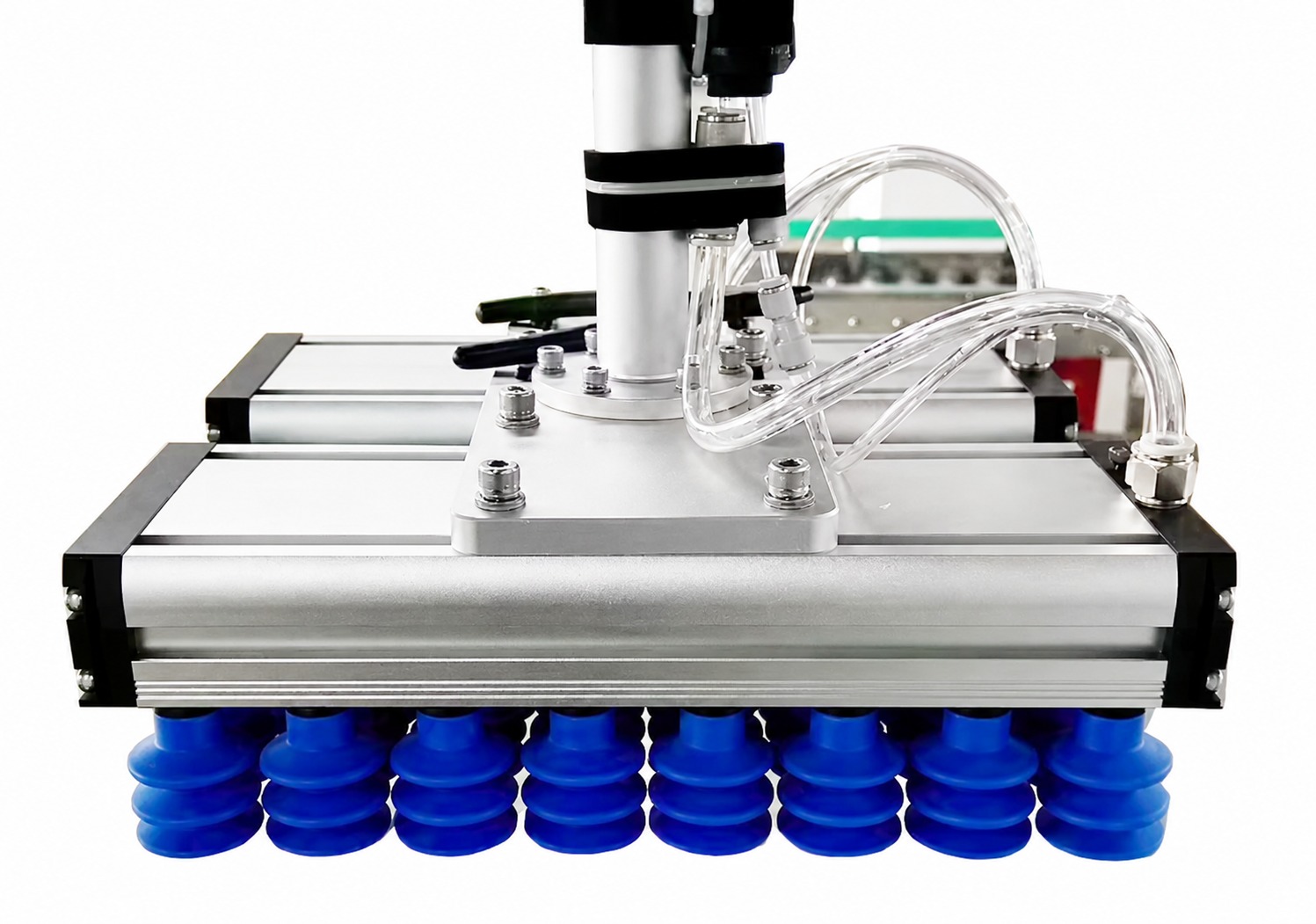

Vacuum Gripper

Vacuum Gripper

Provides controlled handling for cartons, boxes and products with regular surfaces.

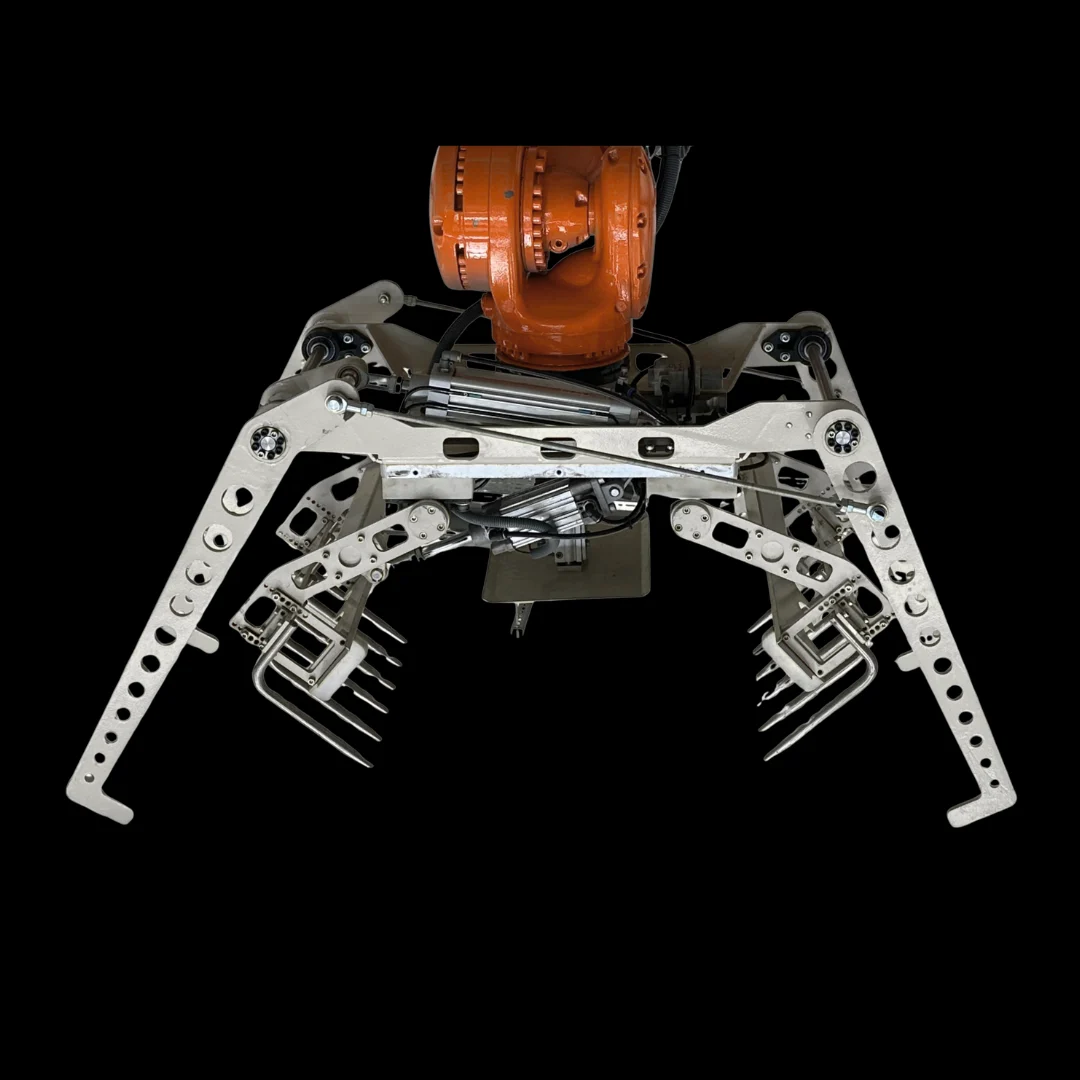

Pallet Gripper

Pallet Gripper

Optimizes end-of-line operations by enabling automatic feeding of empty pallets.

Key Features

Ability to handle bagged products, cartons, boxes and packaged goods
Different pallet patterns manageable through software
Fast product and recipe changeover
Adaptability to different pallet dimensions
Integration with automatic pallet feeding systems
Structure suitable for slip sheet and plastic sheet placement applications
Compatible operation with stretch wrapping and other end-of-line equipment
Compact layout and optimized space utilization

Process Advantages

Easy adaptation to different product and packaging types
Fast product and recipe changeover
Suitable structure for flexible production environments
Space saving through compact layout
Stable and repeatable palletizing quality
High automation level
Scalable structure suitable for future capacity increases

Conventional Palletizing

High capacity continuous production lines

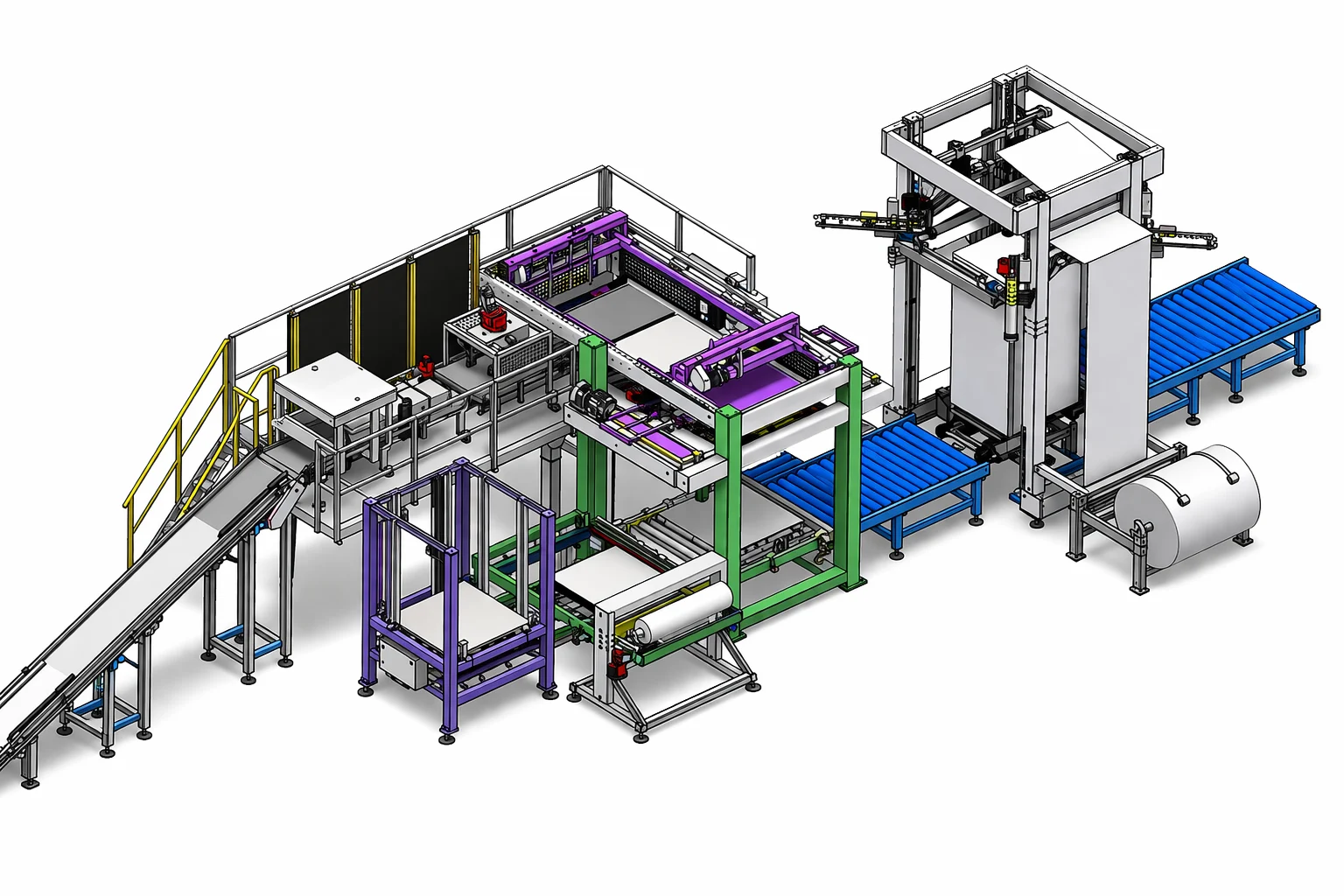

Conventional Palletizing Systems

Conventional Palletizing Systems

ENIVO conventional palletizing systems are developed for regular, stable and high-precision pallet formation in high-volume, continuously operating production lines. They provide a powerful and reliable solution especially in applications where bagged products must be palletized at high speed. Working on a layer-forming principle, these systems align products according to the defined palletizing pattern and transfer them onto the pallet as complete layers. Controlled product orientation, bag alignment, turning and layer transfer make it possible to obtain neat, stable pallets suitable for handling and transport.

1000-3000
Bags/Hour

Operating Principle

Products are transferred through conveyors to the layer-forming section. In this section, products are oriented, aligned and, when required, turned according to the defined palletizing pattern to create the required layer structure. During layer formation, product positions are arranged in a controlled manner. The prepared layer is transferred onto the pallet in a controlled way, and the operation is repeated for each layer.

Key Features

Precise product alignment, turning and layer formation
Neat and stable pallet geometry
Adaptability to different bag types and pallet dimensions
Integration with automatic pallet feeding systems
Structure suitable for slip sheet and plastic sheet placement applications
Compatible operation with stretch wrapping and other end-of-line equipment
High mechanical durability, low wear and easy maintenance access

Process Advantages

Stable operation on high-volume production lines
Regular and stable pallet formation at high speeds
Pallet quality suitable for safe handling and storage
High efficiency in repetitive production
Long service life in heavy-duty applications
Low maintenance requirement and high operational reliability

ENIVO Approach

ENIVO approaches palletizing systems not merely as end-of-line equipment, but as an integrated solution that manages product stability, logistics safety, storage performance and automation integration together. Each project is configured by evaluating product type, capacity requirement, palletizing pattern, plant layout and future production targets together. This approach enables safer shipments, more stable pallet quality and more efficient end-of-line operations.
